The PLCopen Editor

A GUI that let PLC programmer write programs according to IEC-61131-3 and conform to PLCopen XML

The PLCopen Editor saves and loads XML projects accordingly to PLCopen TC6-XML Schemes.

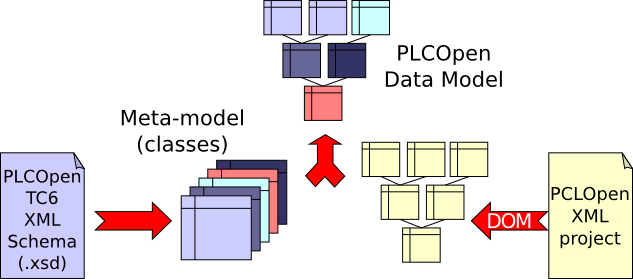

Data-model is based on the official TC6-XML XML Schema. The official .xsd file is used at startup to create a kind of meta model, that define relations between objects inside the PLCopen model. Thanks to this feature, PLCopen Editor can also be used as a PLCopen TC6-XML validator.

PLCOpen editor has built-in export filter that convert graphical languages to their equivalent textual form.

The IEC to C compiler

Compiles textual forms of IEC-61131-3 to C code.

Originally started in 2002 by Mario de Sousa (U-Porto) as a ST/IL->C++ compiler for the MatPLC project, this compiler have found a new place to grow inside Beremiz.

Now "MatIEC", as we named it, works this way:

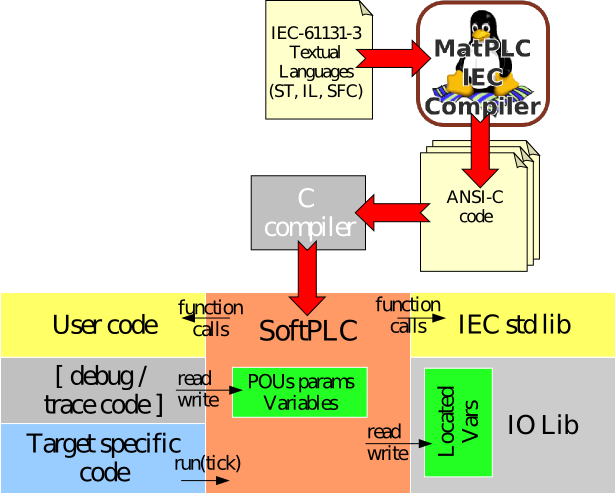

  • Compiles ST/IL/SFC code into ANSI-C code.
  • All POU parameters and variables are accessible through nested C structs
  • Located variables are declared as extern C variables
  • CanFestival CANOpen interface to physical I/O

    Overview to be written

    SVGUI: automated HMI tool, based on SVG

    Overview to be written


    Presentation at Xenomai User Meeting 2009

    Beremiz Roadmap from CanFestival and MatPLC to


    The Beremiz PLC programming environment originally involved developers of the CanFestival free CANopen stack and MatPLC projects. The project has been initiated in order to fill the gap between free software and control engineering.

    Today, thanks to Beremiz, automation users can easily connect IEC-61131 function blocks across CANopen networks with Free Software. Industrials, teachers, students and researchers use that GPL project, and actively contribute with new features every day.

    But what about the PLC programs they produce? Could PLC programming also benefit from the Free Software ideology? A new Free Software Forge is to be held:

    In this presentation, are presented project's passed, present and future milestones.


    Beremiz' 2009 Screen Cast


    Beremiz - IEEE INDIN 2007 - Slides

    The slides presented at INDIN 07. Be careful this PDF crashes evince, xpdf and kpdf. Open with Acrobat Reader. Don't know why.


    Beremiz - IEEE INDIN 07 - Paper

    A paper the Beremiz, going into some technical details on the compiler, and PLCopen editor. Written by Laurent BESSARD, Mário de SOUSA and Edouard TISSERANT.


    Beremiz' 2007 Screen Cast

    Old screen cast. Keep it for the record :-)


    Collected documents

    I. Baranov, "Development approaches of human-machine interface used for monitoring and control applied programs running at computation systems based on Sparc and Elbrus microprocessors in industrial automation" (Russian)

    The article contains overview of existing HMI function blocks and description of steps needed to create new function block for a custom HMI element.

    I. Baranov, А. Glukhov "Open international IEC-61131 standard compliant programming languages for computation systems based on Russian Sparc architecture microprocessors" (Russian)

    Article contains short description about how to create own plugins for Beremiz :

    I. Baranov, "Software development for computation systems based on Russian sparc architecture microprocessors using open international IEC 61131-3 standard" (Russian)

    V. Glukhov, K. Trushkin "Control Systems based on industrial computers from INEUM" (Russian)


    Beremiz developers manual

    Work under developer manual is in progress. PDF version is available here.

    Any contributions to it are very welcome. See section 'Contribute' on the main page.

    Beremiz user manual

    Russian company INEUM has made excelent documentation for their PLCs. It is available on their website. This user manual is written for INEUM's SM1820M PLC series, but there are lot of information on how to use Beremiz.

    Beremiz development team in cooperation with INEUM is working on new Beremiz user documentation. Russian version is already done. Documentation source is available here.

    Until English version is ready, please use machine-translated user manual.

    User manual from Smarteh

    This user manual applies to Smarteh's LPC and LPC-2 controllers, but reader can find relevant information on how to use Beremiz in general.

    Beremiz User Manual from LOLITECH

    The manual is outdated and kept more for historical reasons.

    How To

    Build on Linux

    Latest build and run instructions are always available in README file.

    User install of Beremiz on Linux


    # Ubuntu/Debian :
    sudo apt-get install build-essential bison flex autoconf
    sudo apt-get install python-wxgtk3.0 pyro mercurial
    sudo apt-get install python-nevow python-matplotlib python-lxml
    sudo apt-get install python-zeroconf python-cycler
    sudo apt-get install python-autobahn python-u-msgpack


    mkdir ~/Beremiz
    cd ~/Beremiz

    Get Source Code

    cd ~/Beremiz
    hg clone
    hg clone

    Build MatIEC compiler

    cd ~/Beremiz/matiec
    autoreconf -i

    Build CanFestival (optional)

    Only needed for CANopen support. Please read CanFestival manual to choose CAN interface other than 'virtual'.

    cd ~/Beremiz
    hg clone
    cd ~/Beremiz/CanFestival-3
    ./configure --can=virtual

    Build Modbus library (optional)

    Only needed for Modbus support.

    cd ~/Beremiz
    hg clone Modbus
    cd ~/Beremiz/Modbus

    Build BACnet (optional)

    Only needed for BACnet support.

    cd ~/Beremiz
    svn checkout BACnet
    cd ~/Beremiz/BACnet
    make MAKE_DEFINE='-fPIC' all

    Launch Beremiz

    cd ~/Beremiz/beremiz

    How to cross-compile MatIEC for Windows

    Cross-Compiling under GNU/Linux for Windows

    sudo apt-get install build-essential bison flex autoconf mercurial mingw-w64
        hg clone
        cd matiec
        automake --add-missing
        ./configure --host=i686-w64-mingw32 LDFLAGS="-static"

    How to run Beremiz on OSX

  • Install XQuartz-2.7.11.dmg
  • Install macports
  • Install python2 from macports (follow macports instructions)
  • Install pip, setuptools, python-nevow, python-twisted, python-lxm
  • Beremiz must be launched with implicit path to python2 from macports
  • How to build Beremiz documentation

    Source code for Beremiz user manual is stored in doc directory in project's source tree. It's written in reStructuredText (ReST) and uses Sphinx to build documentation in different formats. See output of 'make help' below with a list of supported output formats.

    cd ~/Beremiz/doc
    $ make help
    Please use `make <target>' where <target> is one of
     html       to make standalone HTML files
     dirhtml    to make HTML files named index.html in directories
     singlehtml to make a single large HTML file
     pickle     to make pickle files
     json       to make JSON files
     htmlhelp   to make HTML files and a HTML help project
     qthelp     to make HTML files and a qthelp project
     devhelp    to make HTML files and a Devhelp project
     epub       to make an epub
     latex      to make LaTeX files, you can set PAPER=a4 or PAPER=letter
     latexpdf   to make LaTeX files and run them through pdflatex
     text       to make text files
     man        to make manual pages
     texinfo    to make Texinfo files
     info       to make Texinfo files and run them through makeinfo
     gettext    to make PO message catalogs
     changes    to make an overview of all changed/added/deprecated items
     linkcheck  to check all external links for integrity
     doctest    to run all doctests embedded in the documentation (if enabled)

    To build documentation you need following packages on Ubuntu/Debian:

    sudo apt-get install build-essential python-sphynx

    Documentation in HTML

    Build documentation

      cd ~/Beremiz/doc
      make all

    Result documentation is stored in directories 'doc/_build/dirhtml*'.

    Documentation in PDF

    To build pdf documentation you have to install additional packages on Ubuntu/Debian:

    sudo apt-get install textlive-latex-base texlive-latex-recommended \
         texlive-fonts-recommended texlive-latex-extra

    Build documentation

      cd ~/Beremiz/doc
      make latexpdf

    Result documentation is stored in 'doc/_build/latex/Beremiz.pdf'.

    Use CANopen extension

    On mapping CANopen and IEC-61131

    Presentation slides

    Submitted paper


    IEC 61131

    IEC-61131 is a normative document provided by the standards organization IEC(International Electrotechnical Commission) and describing a standard forimplementing programmable controllers.

    The part 3 of this document (commonly named IEC 61131-3) specifies syntax and semantics for programming language for programmable controllers. Beremizimplements all the languages described in this document.


    PLCopen is a vendor- and product-independent worldwide association defininginternational standards for various topics related to control programming.For this purpose, PLCopen has 6 technical committees.

    The goal of the sixth committee (TC6) is to define a standard file format, based on XML, for exchanging programmables controllers programmed using IEC 61131-3 languages. Beremiz uses this file format for saving the PLCprograms of projects.


    CANopen is a communication protocol and device profile specification for embedded systems used in automation.

    CANopen is a CAN-based communication system. It comprises higher-layer protocols and profile specifications. CANopen has been developed as a standardized embedded network with highly flexible configuration capabilities. It was designed originally for motion-oriented machine control systems, such as handling systems. Today it is used in various application fields, such as medical equipment, off-road vehicles, maritime electronics, railway applications, or building automation.
